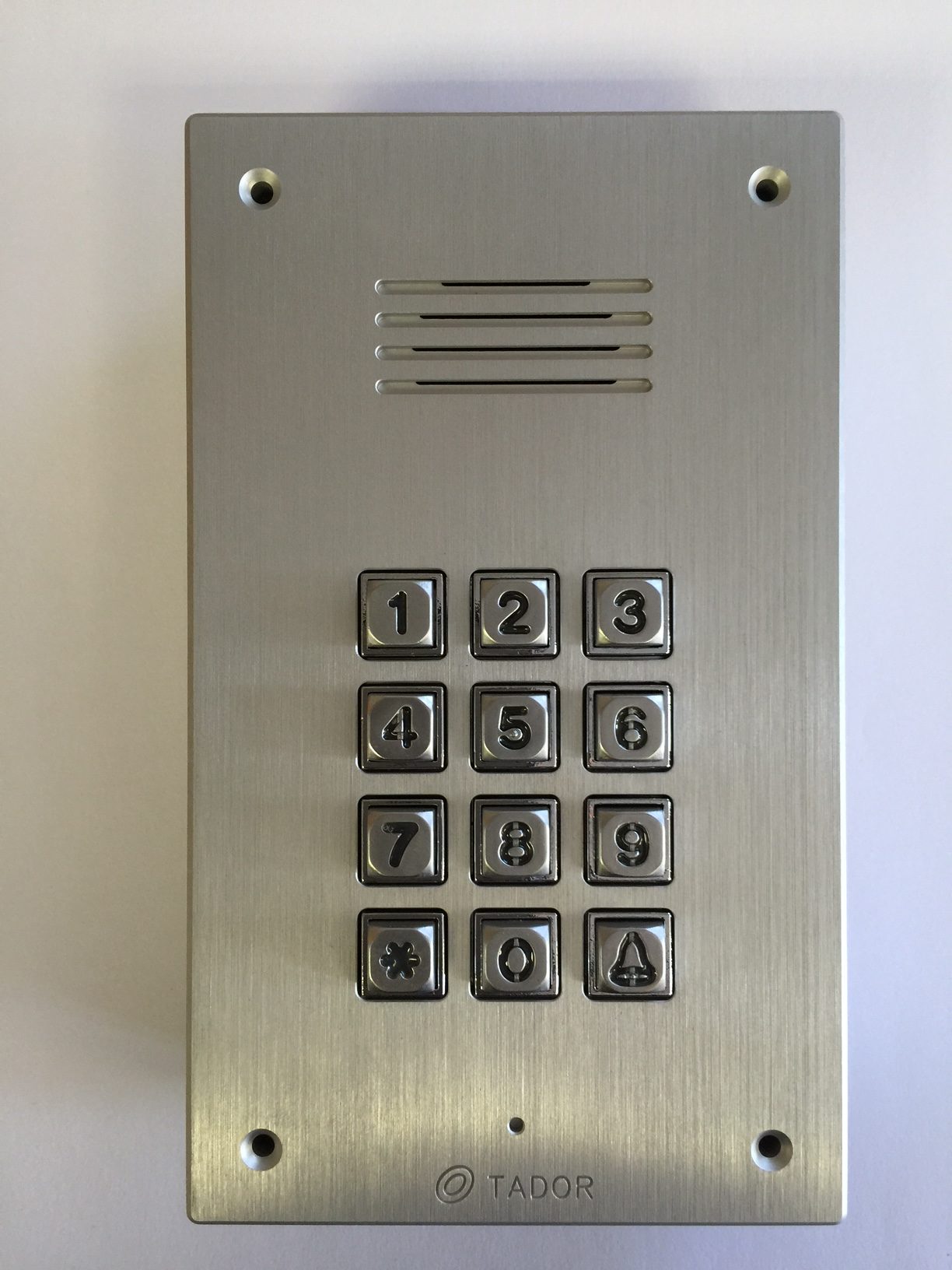

Tador Multi button Analog Door Phone

The Tador Multi button analog door phone or Keypad Codephone unit is an intelligent telephone which connects to a PABX, mounted on an office entrance which enables visitors to call any extension or to the reception.

Authorized personnel can enter by keying in an access code. On the other side of the system any person receiving a call from the door phone unit can speak with the visitor and open the door from his telephone extension by pressing a particular key. Opening the door from the inside is possible by pressing a bypass push button.

Specifications:

• Operating voltage: AC 12V 1000mA
• Operating electric or magnetic lock. (normally open or normally close)
• Opening time: 1-99 seconds
• Size: Under plaster 195 x 115 x 50 mm On the wall 154 x 100 x 35 mm (H*W*D)

Download the Tador Multibutton Analog Door phone user guide
