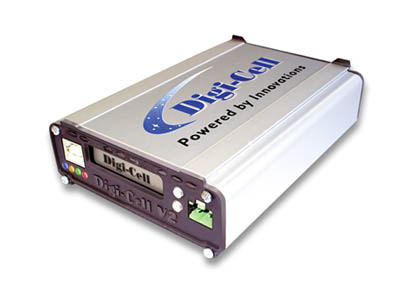

PREMICELL DIGICELL Least cost cellular Routers:

Premicell Digicell Least cost cellular Routers save money on all calls to cell phones from your landlines through a PABX.  There are a few options available, depending on whether you have a Telkom phone system, a PABX or if you’re just using 1 line.

The router saves you up to 45% of your bill and here’s how it works!

The Digi Cell houses a normal cell phone SIM card. Whenever you make a call to a cell phone, the call is now routed via the Digi Cell making the call a Cell to Cell call. If you don’t have one at present, you’re paying a Telkom to cell rate of R1.60 per minute even if you use only 1 second.

By using the Digi Cell, the call is billed at Cell to Cell rates which are cheaper already, but the real saving comes in because it is now per second billing. Contact us for more info.

The Digi-Cell V2 GSM least-cost router is a high quality, locally-made unit using state-of-the-art technology developed for the South African and African markets over a number of years. This router is based on the popular Digi-Cell but has been improved by the addition of an USB interface as well as a LCD screen with two navigational buttons. The unit provides a cost-effective means of achieving fixed cellular connectivity to the GSM network via a PABX, PC or LAN environment, giving simultaneous voice and SMS functionality as well as PC-FAX and data capability. The router is also capable of utilizing some of the latest network technologies available such as GPRS.

Digi-Cell V2 Features

Fully programmable

• The following settings are programmable via a key-set (basic programming) or via laptop: (advanced programming)

• LCD display for easy diagnostics

• Dial tone amplitude and frequency

• Incoming and outgoing audio levels to suit individual PABX systems

• Tip and ring voltages and loop current settings

• Line reversal

• Network re-initialization (reduces lock-up)

• Last digit detection (for rapid connectivity)

• Password protected – Prevents unauthorized programming

• Remote Diagnostics

• Network monitor for easy site inspections

All programming and diagnostics are done remotely via PC and modem.

• Software Upgrades – All software upgrades are done on-site, via laptop.

• Call Barring – Router can be programmed to bar specific numbers or networks.

• Call-Back Facility – The system is programmable for controlled call-back using up to 128 pre-stored cell phone numbers or can be set up for unrestricted access for all callers, depending on clients needs.

• SMS Functionality

• Full SMS data suite available

• User-friendly Windows platform

• SMSs can be sent to cell phones or E-mail addresses

• Single or group messaging

• Re-occurring pre-dated message facility

• LAN connectivity (multiple users)

• Simultaneous SMS and voice functionality

• Data transfer can be handled using standard GSM bandwidth or GPRS (Data mode can be activated via navigation keys)

• Router Status Monitoring – The router is provided with free software which enables the installer to monitor the status of the router at any time, via SMS or E-mail.

Typical Reports include:

• Active status of router

• Airtime billing for a given period

• Signal strength status

Digi-Cell Technical Data

• Size: 126mm x 88mm x 32mm

• Weight: 200g

• Cover material: Aluminium Extrusion

• Temperature: -20°C to +55°C

• SIM Card: Small

• RF Power Max: 2W

• Sensitivity: – 113 dbm

• Line Voltage: Fully Programmable

• Line Impedance: Fully Programmable

• Loop Current: Fully Programmable
(Automatic shut down if any of the above are out of limits)

• Modem: Siemens MC55 (Dual Band)

• Status Indicator: 4 x LED’s and a 10digit LCD display

• PC Interface: USB Port (SMS/Fax and Data)

• Power Supply: External (100V – 240V AC) CE and UL Approved

• Antenna: External SMA Connection / Dual Band

Digicell V2 Specifications Brochure here 0.9Mb PDF
